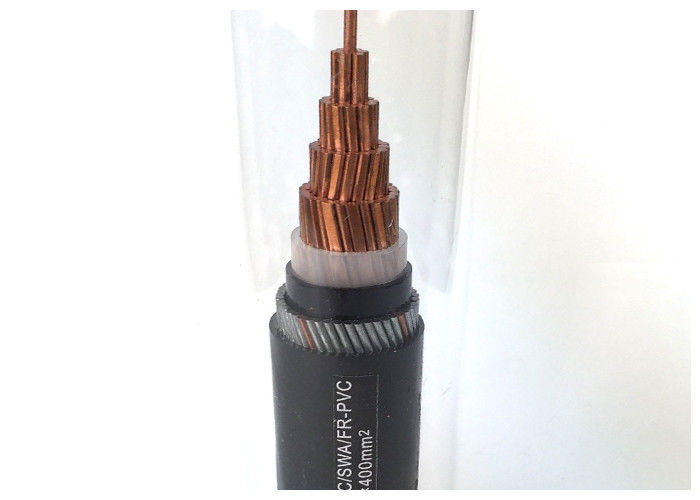

Low Voltage Single Cores Steel Wire Armoured Electrical Cable IEC 60502-2

MOQ:	500 МЕТРОВ
цена:	US$0.4~119 per Meter
Стандартная упаковка:	ударные
Срок доставки:	10 ДНЕЙ
Способ оплаты:	T / T, L / C
Пропускная способность:	10.000 километров в месяц

Подробности Информация

Описание продукта

Подробная информация

Место происхождения

Китай

Фирменное наименование

QINGDAO YICABLE CABLE

Сертификация

ISO,CE,IEC,TUV,KEMA

Название модели:

Кабель СТА бронированный

Тип проводника:

Ку, класс 2

Материал изоляции:

XLPE

Номинальное напряжение:

600/1000V

тип панцыря:

Гальванизированная стальная лента бронированная

Размеры:

1~ 630 SQMM

Сердечники:

2-5

Материал оболочки:

ПВХ

Гарантия:

2-х лет

Стандарты:

IEC/BS//VDE

наружный цвет оболочки:

Чернота или согласно спрошенный

Выделить:

armored electrical wire

armored cable wiring

Описание продукта

Low Voltage Single Cores Steel Wire Armored Electrical Cable IEC 60502-2 Standard

Applications

STA Armored Electric Cable YJV22 4 Core Cable applies to electrical power transmission and distribution lines with AC rated voltage Uo/ U up to and including 0.6/1kV.

For outdoor and indoor installation in damp and wet locations,laid directly in the ground where excessive mechanical stresses are present in sloping and moving terrains and in vertical or inclined laying,as well as in locations susceptible to sliding.

YJ: XLPE insulation

V: PVC insulation

V: PVC sheath

22: Galvanized steel tape armoring

32: Galvanized steel wire armoring

Constructions

Conductor: Plain circular stranded copper conductor, conforms to IEC 60228 class 2

Insulation: PVC/A, XLPE

Inner Covering: PVC

Armoring: Steel Wire, Steel Tape, Aluminum Wire at request

Sheath: PVC/ST₂ to IEC 60502, black

Note: Insulation color as per standards or at request

Applications

Used as power distribution and transmission line at rated voltage 0.6/1kV.

Suitable for burying in ground, laying down wells and under water. Able to bear certain axis pulling force.

Standards

International: IEC 60502-1, IEC 60228

China: GB/T 12706.1-2008

Other standards such as BS,DIN and ICEA upon request

Technical data

Rated voltage: 0.6 / 1 kV

Max. Conductor Temp.: normal (70°C), short circuit no more than 5 s (160°C when section-area below 300mm², 140°C when section-area above 300mm²)

Min. Ambient Temp.: 0°C, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D

Nom. Cross-section of conductor	Strands No./Dia. Of Conductor	Insulation Thickness	Inner Covering Thickness	Steel Tape Thickness	Sheath Thickness	Approx. O.D.	Approx.Weight	Max. D.C Resistance of Conductor (20 ℃)	Testing Voltage A.C	Current Rating
mm²	pc/mm	mm	mm	mm	mm	(mm)	kg/km	Ω /km	kV/5min	In air (A)		In soil(A)
1 × 25	7/2.14	0.9	1.0	2 × 0.2	1.8	14.0	442	0.727	3.5	120	155
1 × 35	7/2.52	0.9	1.0	2 × 0.2	1.8	15.0	547	0.524	3.5	150	185
1 × 50	10/2.52	1.0	1.0	2 × 0.2	1.8	17.0	688	0.387	3.5	180	220
1 × 70	14/2.52	1.1	1.0	2 × 0.2	1.8	18.0	895	0.268	3.5	230	270
1 × 95	19/2.52	1.1	1.0	2 × 0.2	1.8	20.0	1125	0.193	3.5	285	320
1 × 120	24/2.52	1.2	1.0	2 × 0.2	1.8	22.0	1358	0.153	3.5	335	365
1 × 150	30/2.52	1.4	1.0	2 × 0.2	1.8	23.0	1649	0.124	3.5	385	410
1 × 185	37/2.52	1.6	1.0	2 × 0.5	1.8	25.0	1984	0.0991	3.5	450	465
1 × 240	48/2.52	1.7	1.0	2 × 0.5	1.8	28.0	2489	0.0754	3.5	535	540
1 × 300	61/2.52	1.8	1.0	2 × 0.5	1.9	30.0	3036	0.0601	3.5	620	610
1 × 400	61/2.97	2.0	1.2	2 × 0.2	2.1	35.0	4230	0.0470	3.5	720	695
1 × 500	61/3.23	2.2	1.2	2 × 0.2	2.2	39.0	5194	0.0366	3.5	835	780
1 × 630	61/3.50	2.4	1.2	2 × 0.2	2.4	45.0	6504	0.0283	3.5	960	880

Certificates

CE, RoHS, CCC, KEMA and more others at request

Packing & Shipping

All cable For exporting are well packed and protected by wooden drum or Wood and Steel Drum.

The packing material is depended on the weight and size of cable.

The good information, manufacture information, and the client's information is firmly printed on each size of drum.

After the well packed cable drums sent to Sea Port, they are loaded into 20 FT container or 40 FT container. All cable drum are firmly fixed by safety belt to make sure, no movement during the sea freight.

The size of the container is chosed according to weight of total loaded goods or as per the client's requirement.

FAQ

Q:	How long does it take to get a quote back?
A:	Most quotes are returned within 24 hours, however, if it is for a special construction, it could take more days.

Q:	Do you custom package?
A:	We strive to meet our customers' needs and therefore have no problem meeting most specifications. We can reel into coils, disposable cartons, special reels, or load your wire and cable into reusable plastic containers. Please check with your sales representative first to verify we can meet your need.

Q:	What warranties do your products carry?
A:	SHAN cable guarantees that all of our products, wires cables,and more are free from defects. We will take back any product that does not meet the agreed quality by both parties. The specific terms are as follows : 1.We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire 2.We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract. 3.The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier. 4. During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
