Low Voltage Flexible Control Cables Flexible Copper Conductor Wire VDE Standard

Low Voltage Flexible Control Cables Flexible Copper Conductor Wire VDE Standard

MOQ: 1000М
цена: USD 1.6 To 100 per Meter
Стандартная упаковка: Деревянные стальные барабанчики
Срок доставки: 10-15 дней
Пропускная способность: 10КМ в день
Подробная информация
Место происхождения
Китай
Фирменное наименование
QINGDAO YICABLE CABLE
Сертификация
CE/KEMA/CCC/TUV/VDE/IEC/CE/BS
Материал проводника:
Медь
Экрана:
медный провод
Изоляция:
ПВХ
Тип экрана:
Заплетенная медная проволока
Сердечники:
2 до 61
упаковка:
Стальной деревянный барабанчик
Выделить:

multicore power cable

,

multi core electrical cable

Описание продукта

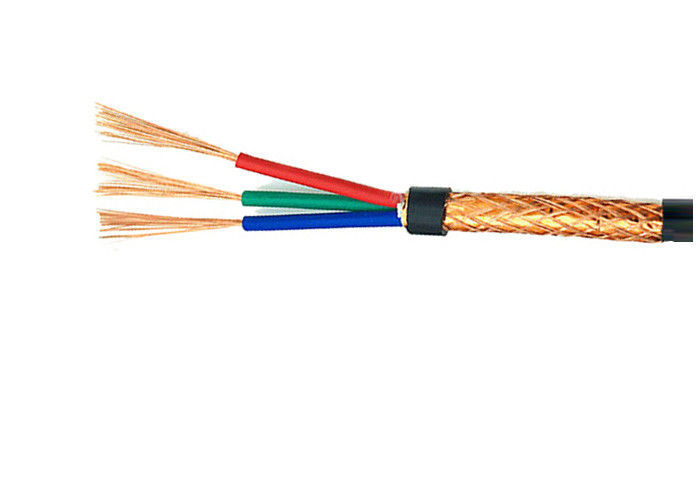

Low Voltage Shielded Multicore Cable Control System Control Cable PVC Insulated Copper Wire



Descriptions:



Conductor: Flexible Copper Conductor

Insualtion: PVC

Screen: Copper Wire Brain Screen

Sheath: PVC



Operating characteristics



Rated voltage: U0 / U is 450 / 750V.
Conductor wire core long-term working temperature is 70 ℃, 95 ℃ two types of cable laying temperature not lower than 0 ℃.
Recommended cable bending radius as follows:
Non-armored cable should be not less than 6 times the cable diameter;
Armor or copper tape shielded cable, shall not be less than 12 times the cable diameter;
Shielded flexible cable, not less than 6 times the cable diameter



Standard:





IEC Standard: IEC 60227, IEC60228

China Standard: GB9330

Other standards such as BS,DIN and ICEA upon request



Certificates



CE, RoHS, CCC, KEMA and more others at request



Application:



Suitable for industrial and mining enterprises, energy and transportation sectors, for rated voltage 450/750 volts control, protection PVC insulated lines and other occasions, and PVC sheathed control cable.





Why Choose SHAN CABLE



Here's Shanghai Shenghua Cable Is Committed to Offer for Every Customer:

High quality cable product with competitive price;

OEM cable product

Custom design per specific cable requirements and budgets;

Fast and on-time delivery of cable;

Flexible business deal;

Chief cable engineer with over 40 years' experience;

Harmonious colleague and customer relationship;

All cable products 100% Inspection;

Comprehensive after-sale service.



Cross-Sectional
Area mm2
Thickness of
Insulation mm
Diameter of
Copper Wire mm
Thickness of
Sheath mm
Overall Diameter
mm
Min resistance of
insulation at
70℃ MΩ/km
Max.D.C resistance
of at 20℃
MΩ/km
Approx Weight
(kg/km)
min max
4x0.75 0.6 0.15 1.2 8.1 9.7 0.012 24.5 144
4x1 0.6 0.15 1.2 8.4 10.2 0.011 18.1 153
4x1.5 0.7 0.15 1.2 9.5 11.4 0.011 12.1 190
4x2.5 0.8 0.15 1.5 10.9 13.1 0.01 7.41 276
4x4 0.8 0.15 1.5 12.5 15.1 0.0085 4.61 367
4x6 0.8 0.15 1.5 13.6 16.5 0.007 3.08 467
4x10 1 0.2 1.7 17.1 20.7 0.0065 1.83 728
7x0.75 0.6 0.15 1.2 9.3 11.2 0.012 24.5 178
7x1.0 0.6 0.15 1.2 9.7 11.7 0.011 18.1 209
7x1.5 0.7 0.15 1.5 11 13.3 0.011 12.1 239
7x2.5 0.8 0.15 1.5 13.3 16.1 0.01 7.41 398
7x4 0.8 0.15 1.5 14.6 17.6 0.0085 4.61 528
7x6 0.8 0.2 1.5 16 19.4 0.007 3.08 717
7x10 1 0.2 1.7 20.7 25.1 0.0065 1.83 1145
10x0.75 0.6 0.15 1.5 11.3 13.7 0.012 24.5 214
10x1 0.6 0.15 1.5 12.5 15.1 0.011 18.1 300
10x1.5 0.7 0.15 1.5 14.2 17.2 0.011 12.1 367
10x2.5 0.8 0.15 1.7 16.5 20 0.01 7.41 572
10x4 0.8 0.15 1.7 18.6 22.5 0.0085 4.61 787
10x6 0.8 0.2 1.7 20.5 24.8 0.007 3.08 992







                                                               After-service commitment



       Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:
1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning
technical advisory service when establish cooperation relationship with clients.
4. Thoughtful after sales service . Our product are warranted by PICC(People's Insurance Company of China). We will
provide free maintaining and debugging within 12 month after installation(except for the wrong using).
5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.
6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.
We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us more closer and tight!


                                                                                             Shanghai Shenghua Cable (Group) Co., Ltd.
