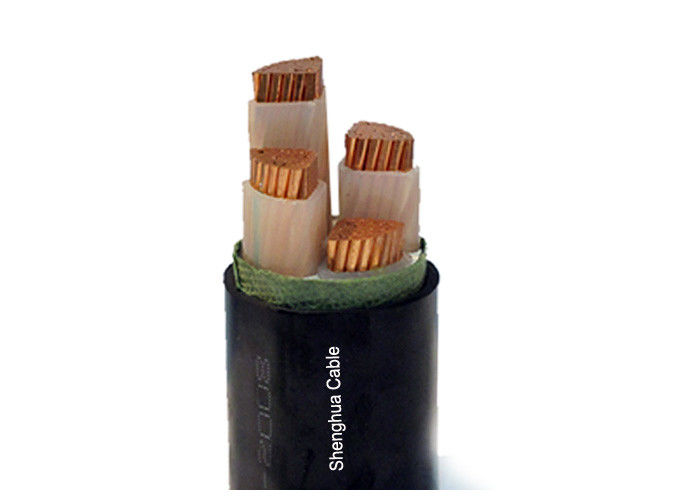

Four Core XLPE Insulated Power Cable Polypropylene Filler CE IEC Certification

Four-Core XLPE Copper Cable Polypropylene Filler CE IEC Certification

Description:

0.6/1kv XLPE Insulated Electric Power cable

CU/XLPE/PVC, IEC 60502

IEC 60502, IEC 60228, GB/T 12706.1-2008.

CE, CCC, KEMA. ISO. VDE

Constructions

Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228

Insulation : XLPE(cross-linked polyethylene) rated at 90 ℃

Sheath : PVC type ST₂ to IEC 60502, black

Applications

For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.

Standards

International: IEC 60502, IEC 60228

China: GB/T 12706.1-2008

Other standards such as BS,DIN and ICEA upon request

Technical data

Rated voltage: 0.6/1kV

Max. Conductor Temp.: normal (90℃), short circuit no more than 5 s (160℃ when section-area below 300mm², 140℃ when section-area above 300mm²)

Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0℃

Min. Bending Radius: single core cable 20(d+D)±5%

Multi-core cable 15(d+D)±5%

Certificates

CE, RoHS, CCC, KEMA and more others at request

Ordering Advice

Rated Voltage

Application Standard: IEC/BS/UL/GB

Number of Cores

Conductor Size & Construction

Type of Insulation

Armored or unarmored. If armor, the armor type & material

The Requirement of Sheath

Length of Cable & Packing Requirement

Other Requirement

Technical Specifications:

Packing and Shipping

        We are capable of meeting the strictest delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.

Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.

 After-service commitment:

Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:

1. Customer is God. We will cherish every client, every cooperation by heart.

2. Free pre-sales service. We will provide best proposal for each client.

3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning technical advisory service when establish cooperation relationship with clients.

4. Thoughtful after sales service. Our product are warranted by PICC (People's Insurance Company of China). We will provide free maintaining and debugging within 12 month after installation(except for the wrong using).

5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.

6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.
We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us more closer and tight!
