0.6kV / 1kV XLPE Insulated Pvc Jacket Power Cables IEC60502 BS7870 Standard
  • Название
  • Название
  • Название
  • Название

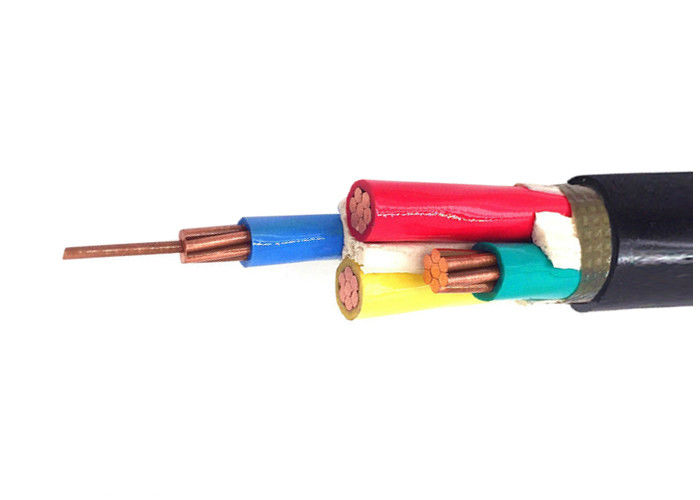

0.6kV / 1kV XLPE Insulated Pvc Jacket Power Cables IEC60502 BS7870 Standard

MOQ: 1000 метров
цена: $0.29/M ~ $120/M
Стандартная упаковка: Деревянные барабанчики
Срок доставки: 7 ~ 15 дней
Способ оплаты: T / T, L / C
Пропускная способность: 20.000 километров в месяц
Подробности Информация
Описание продукта
Подробная информация
Место происхождения
Китай
Фирменное наименование
QINGDAO YICABLE CABLE
Сертификация
ISO,CE,IEC,TUV,KEMA
стандарт:
ИЭК60502, ВДЭ0276-603, ИКЭАС-95-658, ект.
Емкость:
2000км/монтх
проводник:
CU
Размеры:
1,0 до 630 Sqmm
Сердечники:
4
Оболочка:
ПВХ
Свободный образец:
Да
Выделить:

xlpe power cable

,

cross linked polyethylene cable

Описание продукта

0.6/1kV XLPE Insulated Pvc Jacket Power Cables IEC60502 BS7870 Standard​



Applications



Electric Cable Core Cable applies to electrical power transmission and distribution lines with AC rated voltage Uo/ U up to and including 0.6/1kV.

For outdoor and indoor installation in damp and wet locations,laid directly in the ground where excessive mechanical stresses are present in sloping and moving terrains and in vertical or inclined laying,as well as in locations susceptible to sliding.



YJ: XLPE insulation

V: PVC insulation

V: PVC sheath



Standards



International: IEC 60502, IEC 60228, IEC 60332

China: GB/T 12706.1-2008

Other standards such as BS,DIN and ICEA upon request

font-size:10.0000pt;mso-font-kerning:0.0000pt;" >PVC type ST2 to IEC 60502, black





Technical data



Rated voltage: 0.6 / 1 kV

Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 12 x cable O.D





Specifications



Type

Desciption

Rated Voltage

NO. of Cores

Nomibal section(mm2)

Applications

YJV YJLV

Cu or Al conductor,XLPE insulated.PVC sheathed electric cable

0.6/1KV

1,2,3,4

1.5 to 400

For laying indoors and outdoors.The LV XLPE insulated power cable is used in transmission and distribution system at rated voltagae U(Um) ≤10KV.The HV XLPE insulated power cable refers to the power cable transmission between 10KV-35KV, it is often applied to the main road of power transmission. Able to bear certain traction during installation, but not external mechanical forces.

3+1

3×4+1×2.5 to 3×400+1×185

6/6kV

1,3

25 to 500

8.7/10kV 8.7/15kV 12/20kV

1

25 to 500

3

25 to 300

21/35kv

1

50 to 500













Product Features:

  1. Excellent Electrical and Physical Properties - Much less electricity transmission loss, energy saving.
  2. Capability of Carrying Large Currents - Higher operating temperature.
  3. Higher strength and stability - Anti thermal deformation, stress crack as well as Thermal Aging.
  4. Ease of Installation - No line layout limitation and topography or height restrictions.
  5. Free from Maintenance - Long service life up to 60 years.

Our Advantage

  1. Only high quality XLPE insulation material are used.
  2. Massive production offer you competitive price.
  3. Free sample and OEM.

Packing & Shipping



All cable For exporting are well packed and protected by wooden drum or Wood and Steel Drum.

The packing material is depended on the weight and size of cable.

The good information, manufacture information, and the client's information is firmly printed on each size of drum.



After the well packed cable drums sent to Sea Port, they are loaded into 20 FT container or 40 FT container. All cable drum are firmly fixed by safety belt to make sure, no movement during the sea freight.

The size of the container is chosed according to weight of total loaded goods or as per the client's requirement.



Our Services

♦ We are the one of biggest manufacture of electric wire and power cable in southwest of China and has more than 20 years producing and marketing experience.

♦ We accept OEM. The cable size and material are customized.Ur own logo and

own design are welcome. We will produce according to your requirement and description;

♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.





FAQ
1. Shipping: By sea or air due to heavy weight. Samples will be send by DHL, Fedex. etc
2. Payment: We accept T/T, L/C , just choose what you like
3. Delivery time: Generally 7~10 working days upon receipt deposit. According to the quantity.
4. MOQ: Generally our MOQ is 1000meters. samples below 20 centimeter can be provided freely.



0.6kV / 1kV XLPE Insulated Pvc Jacket Power Cables IEC60502 BS7870 Standard 0
