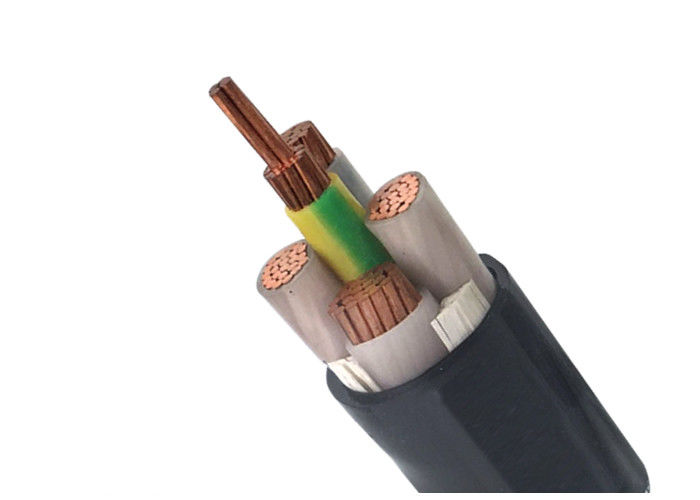

BS7870 Standard 4 Core XLPE Insulated Power Cable For Distribution Network

MOQ:	1000 метров
цена:	$0.29/M ~ $120/M
Стандартная упаковка:	Деревянные барабанчики
Срок доставки:	7 ~ 15 дней
Способ оплаты:	T / T, L / C
Пропускная способность:	20.000 километров в месяц

Подробности Информация

Описание продукта

Подробная информация

Место происхождения

Китай

Фирменное наименование

QINGDAO YICABLE CABLE

Сертификация

ISO,CE,IEC,TUV,KEMA

Напряжение:

0.6/1kV

Емкость:

2000км/монтх

Операционная Температура:

90°C

Размеры:

1,0 до 630 Sqmm

Сердечники:

Оболочка:

ПВХ

Свободный образец:

Доступный

Выделить:

xlpe power cable

cross linked polyethylene cable

Описание продукта

BS7870 Standard 4 Core XLPE Insulated Power Cables For Distribution Network

Applications

XLPE insulated power cable are used as electricity power transmission lines which applies common circumstances as below:

Mainly used for transmitting electricity power or used as control cable.
Common operating temperature up to 90°C (emergency at 130°C and short circuit 250°C), both wet or dry location.
Voltage rate 600/1Kv.
Suits for main or secondary power lines of overhead (aerial) installations, direct burial underground or in dust.
Cable trunking, cable tray, cable ladder, in tunnel or wire pipe and in switchgear and other complex operating environment.
Works perfectly after metallic sheath (metal especially aluminum clad) or metal wire armored ( especially steel wire armored - SWA) when isolation of electromagnetic effects, anti-interference, anti-jamming and additional strength are required.

Specifications

Conductor material: copper or aluminum.
Qty of cores: 1C, 2C, 3C, 4C, 3C+1E, 4C+1E, 3C+2E, 5C&Above.
Armor: non-armored, steel tape armored or steel wire armored, copper and aluminum wire/tape screen also available.
Rare specifications or manufacturing by your sample can also be full filled.

Standards

IEC 60332-1 Tests on electric and optical fibre cables under fire conditions.
IEC 60502-1 Power cables with extruded insulation and their accessories for rated voltages of 1 kV and 3 kV.
IEC 60754 Test on gases evolved during combustion of materials from cables.
IEC 61034 Measurement of smoke density of cables burning under defined conditions.
BS 7870-3 LV and MV polymeric insulated cables for use by distribution and generation utilities.
DIN VDE0276-603 Power cables - Part 603: Distribution cables of rated voltage 0,6/1 kV.
ANSI/NEMA WC 70-2009/ICEAS-95-658 Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy.
AS/NZS 4026:2008 Electric cables - For underground residential distribution systems Standards Australia.
AS/NZS 4961:2003 Electric cables - Polymeric insulated - For distribution and service applications.
AS/NZS 5000.1:2005 Electric cables - Polymeric insulated - For working voltages up to and including 0.6/1 (1.2) kV.
Other Equivalent standards for PVC insulated power cable.

Technical data

Rated voltage: 0.6 / 1 kV

Maximum Conductor Temperature: under normal (90^OC), emergency (130^OC) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0^OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 12 x cable O.D

Specifications

Type	Desciption	Rated Voltage	NO. of Cores	Nomibal section(mm2)	Applications
YJV YJLV	Cu or Al conductor,XLPE insulated.PVC sheathed electric cable	0.6/1KV	1,2,3,4	1.5 to 400	For laying indoors and outdoors.The LV XLPE insulated power cable is used in transmission and distribution system at rated voltagae U(Um) ≤10KV.The HV XLPE insulated power cable refers to the power cable transmission between 10KV-35KV, it is often applied to the main road of power transmission. Able to bear certain traction during installation, but not external mechanical forces.
		0.6/1KV	3+1	3×4+1×2.5 to 3×400+1×185
		6/6kV	1,3	25 to 500
		8.7/10kV 8.7/15kV 12/20kV	1	25 to 500
		8.7/10kV 8.7/15kV 12/20kV	3	25 to 300
		21/35kv	1	50 to 500

Product Features:

Excellent Electrical and Physical Properties - Much less electricity transmission loss, energy saving.
Capability of Carrying Large Currents - Higher operating temperature.
Higher strength and stability - Anti thermal deformation, stress crack as well as Thermal Aging.
Ease of Installation - No line layout limitation and topography or height restrictions.
Free from Maintenance - Long service life up to 60 years.

Our Advantage

Only high quality XLPE insulation material are used.
Massive production offer you competitive price.
Free sample and OEM.

Packing & Shipping

All cable For exporting are well packed and protected by wooden drum or Wood and Steel Drum.

The packing material is depended on the weight and size of cable.

The good information, manufacture information, and the client's information is firmly printed on each size of drum.

After the well packed cable drums sent to Sea Port, they are loaded into 20 FT container or 40 FT container. All cable drum are firmly fixed by safety belt to make sure, no movement during the sea freight.

The size of the container is chosed according to weight of total loaded goods or as per the client's requirement.

Our Services

♦ We are the one of biggest manufacture of electric wire and power cable in southwest of China and has more than 20 years producing and marketing experience.

♦ We accept OEM. The cable size and material are customized.Ur own logo and

own design are welcome. We will produce according to your requirement and description;

♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.

FAQ
1. Shipping: By sea or air due to heavy weight. Samples will be send by DHL, Fedex. etc
2. Payment: We accept T/T, L/C , just choose what you like
3. Delivery time: Generally 7~10 working days upon receipt deposit. According to the quantity.
4. MOQ: Generally our MOQ is 1000meters. samples below 20 centimeter can be provided freely.
