IEC Standard XLPE Insulated Power Cable MIca Type PVC Outer Sheath Fire - Resistant

MOQ:	500 МЕТРОВ
цена:	US$ 0.5~56 / meter
Стандартная упаковка:	Деревянные барабанчики
Срок доставки:	неделя или 10 дней
Способ оплаты:	L / C, T / T
Пропускная способность:	10000 километров в неделю

Подробности Информация

Описание продукта

Подробная информация

Место происхождения

Китай

Фирменное наименование

QINGDAO YICABLE CABLE

Сертификация

ISO,CE,IEC,KEMA

тип модели:

Силовой кабель низшего напряжения медный

проводник:

Медь

Размеры:

6 | 1000 SQMM

Сердечники:

Изоляция:

XLPE

Гарантия:

два года

Оболочка:

ПВХ

Материал изоляции:

ПВХ

упаковка:

ударные

панцырь:

Стальной провод armored

Выделить:

xlpe electrical cable

xlpe power cable

Описание продукта

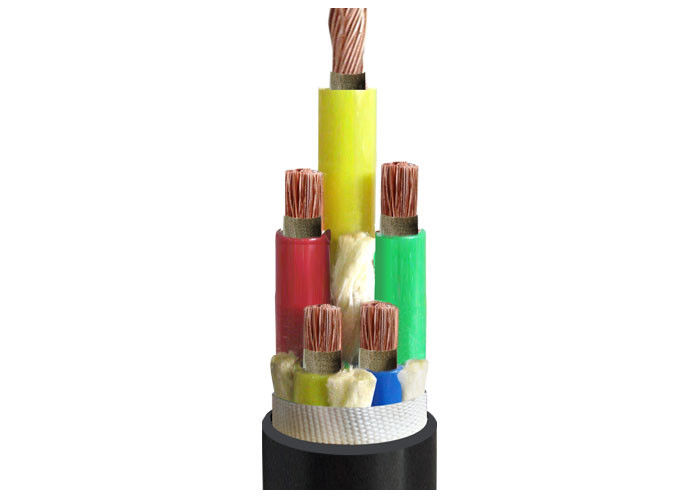

4 core Copper MIca Xlpe PVC Fire-resistant Electric Cable

Applications
This product is applicable to shafts, water and soil, able to bear the larger positive pressure, with power frequency rated voltage of 1kV and below.
For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces.

Application Standards

International: IEC 60502, IEC 60228, IEC60332

China: GB/T 12706 1-2008

Other standards such as BS, DIN and ICEA upon request

Manufacture Standards
International: IEC 60502, IEC 60228, (IEC 60332-3 for FR-type only)
China: GB/T 12706, (GB/T 18380-3 for FR-type only)
Other standards such as BS,DIN and ICEA upon request

Constructions

Code	:	N-YJV
Standarts	:	TS IEC 60502, IEC 502, VDE 0271, BS 6346
Construction	:	1- Solid, Stranded or Flexible Copper Conductor
		2.-MICA TAPE
		3- XLPE insulation (cross-linked PE) or PVC
		4- PVC outer sheath, or PE, LSOH
Application	:	Preferably for installation indoors, in cable ducts and in industrial plants or
		switching stations, underground installation with additional protection where
		mechanical damage is unexpected.
Technical Data	:	Max. operating temperature 90 ºC
		Short circuit temperature 250 ºC

Code Designation

YJ: XLPE insulation

V: PVC insulation or sheath

Technical data

Rated voltage: 0.6/1kv Voltage IEC Standard XLPE Insulated Power Cable MIca Type PVC Outer Sheath Fire - Resistant 0

IEC Standard XLPE Insulated Power Cable MIca Type PVC Outer Sheath Fire - Resistant 1
PVC Insulation: Maximum Conductor Temperature: under normal (75 ℃), emergency (130℃) or short circuit no more than 5 s (160℃) conditions.

XLPE Insulation: Maximum Conductor Temperature: under normal (90^OC), emergency (130^OC) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0^OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 15 x cable O.D

Certificates

ISO,CE, KEMA ,IEC, RoHS, CCC, P3C and more others at request

PACKING AND SHIPPING

We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.

Quote Request Information

1. Material of conductor/insulation/sheath.

2. Voltage classes.

3. Cross section, Short circuit current capacity, tension strength.

4. Order Quantity

Our Services

1.We are the one of biggest manufacture of electric wire and power cable in China and has more than 20 years producing and marketing experience.

2.We accept OEM. The cable size and material are customized.Ur own logo and

own design are welcome. We will produce according to your requirement and description;

♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.

FAQ

1. Shipping: By sea or air due to heavy weight. Samples will be send by DHL, Fedex. etc

2. Payment: We accept T/T, L/C , just choose what you like

3. Delivery time: Generally 7~10 working days upon receipt deposit. According to the quantity.

4. MOQ: Generally our MOQ is 1000meters. samples for below 20 centimeter can be provided freely.
